- DIN 1.6/5.6连接器依据国际MIL-C-39012，CECC22120和IEC60169-8标准生产。产品设计合理紧凑，减少安装空间；
- DIN 1.6/5.6连接器采用螺纹连接方式，连接更紧密稳固，结构简单，不到30秒即可完成接线，安装好后无需拆卸即可检验；
- DIN 1.6/5.6连接器结构和组件简单易于生产，生产效率高，价格低廉。

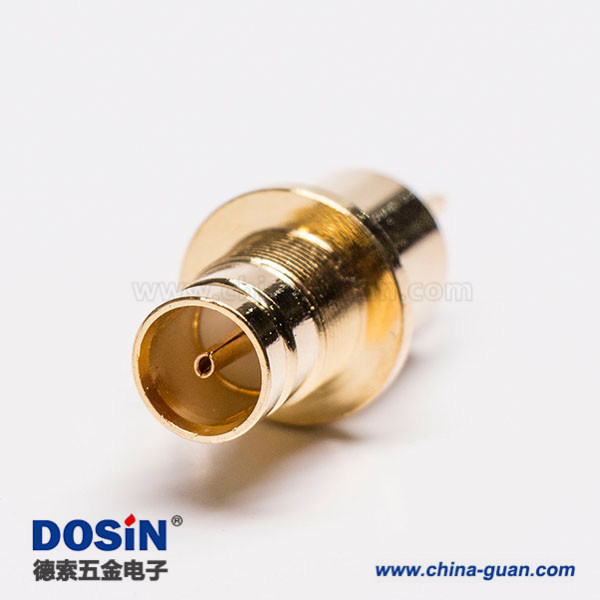

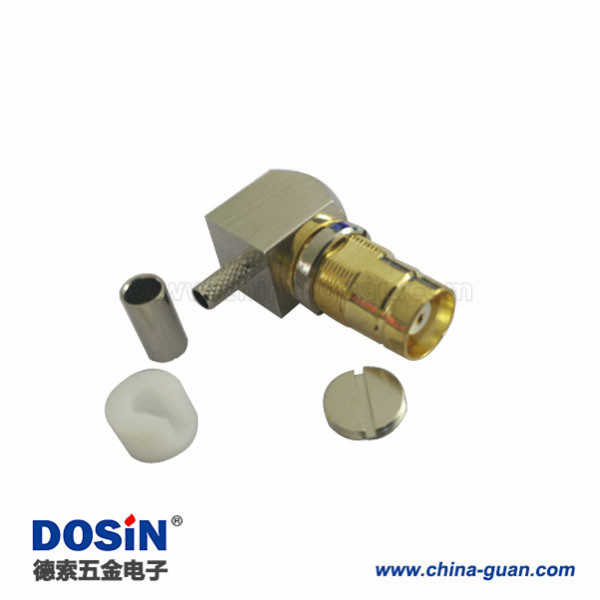

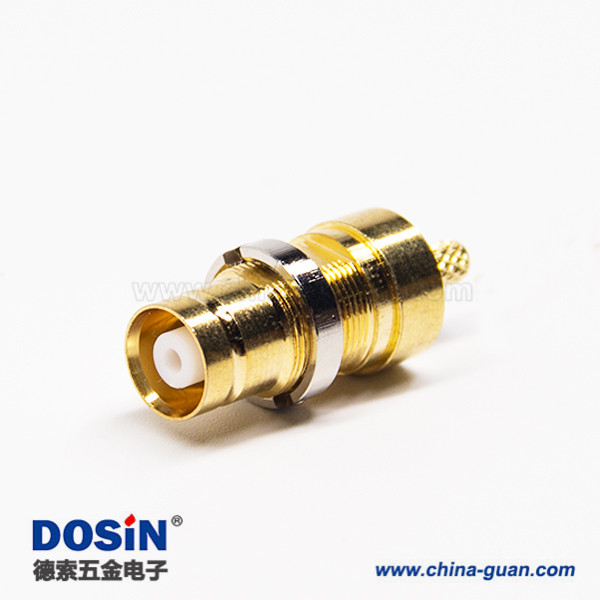

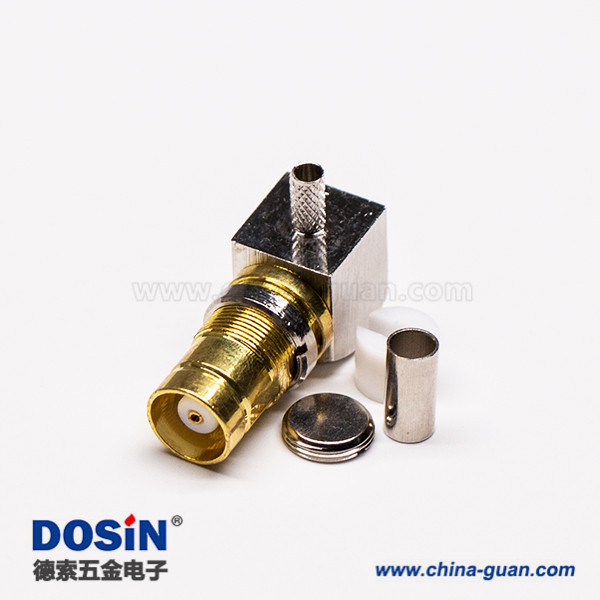

DIN1.6/5.6连接器产品展示
DIN1.6/5.6连接器性能展示
DIN 1.6/5.6连接器电气性能
- DIN 1.6/5.6连接器阻抗：75 ohm
- DIN 1.6/5.6连接器频率范围：0~6GHz
- DIN 1.6/5.6连接器电压驻波比：直式 ≦ 1.3max / 弯式≦ 1.5max
- DIN 1.6/5.6连接器耐电压：1000 V rms
- DIN 1.6/5.6连接器工作电压：335 V rms
- DIN 1.6/5.6连接器中心接触电阻： ≦ 3mW
- DIN 1.6/5.6连接器外接触电阻：≦ 25mW
- DIN 1.6/5.6连接器绝缘电阻≧ 10⁴ mΩ (Megohms min.)
DIN1.6/5.6连接器机械性能
- DIN1.6/5.6连接器耦合方式：M9 x 0.5 thread
- DIN1.6/5.6连接器保持力：6 lbs min.
- DIN1.6/5.6连接器配接耐久性：大于500次（使用铍铜中心针时）
DIN1.6/5.6连接器环境性能
- DIN1.6/5.6连接器环境温度：-65°C ~ +165°C
